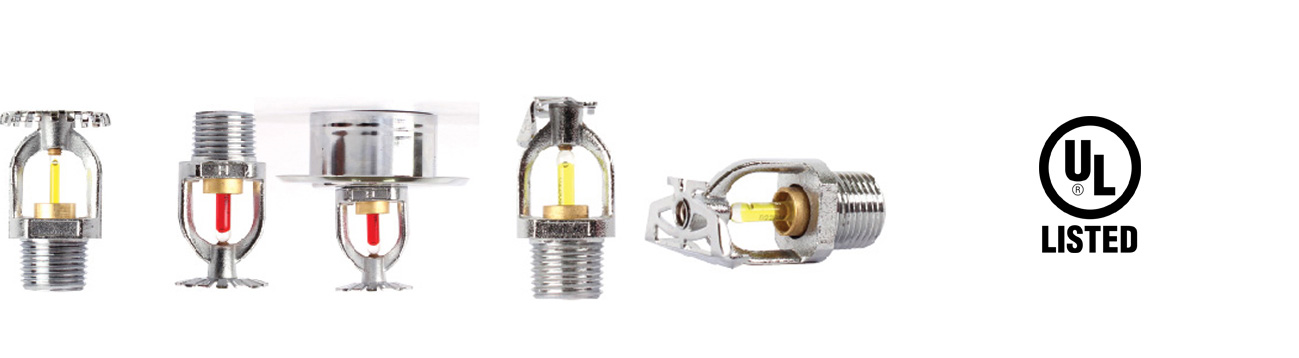

| MODEL | BF001 | BF005 | BF002 | BF004 | BF007 | BF008 |
| Mounting | Upright | Pendent | H. Sidewall | |||
| Quartzoid Bulb Response | Standard | Quick | Standard | Quick | Standard | Quick |
| Orifice Diameter | 13mm | |||||
| Inlet Connection Type | 1/2" NPT | |||||
| K Factor | 5.6 (Imp) / 80 (Metric) | |||||
| Temperature Rating Options | 57℃ , 68℃ , 79℃, 93℃ | |||||
| Max. Working Pressure | 175psig / 1.2MPa (12bar) | |||||
| Min. Working Pressure | 7psig / 0.048MPa (0.48bar) | |||||
| Factory Hydrostatic Test | 500psig (3.4bar) | |||||
| Body Finishing | Chrome Plated | |||||

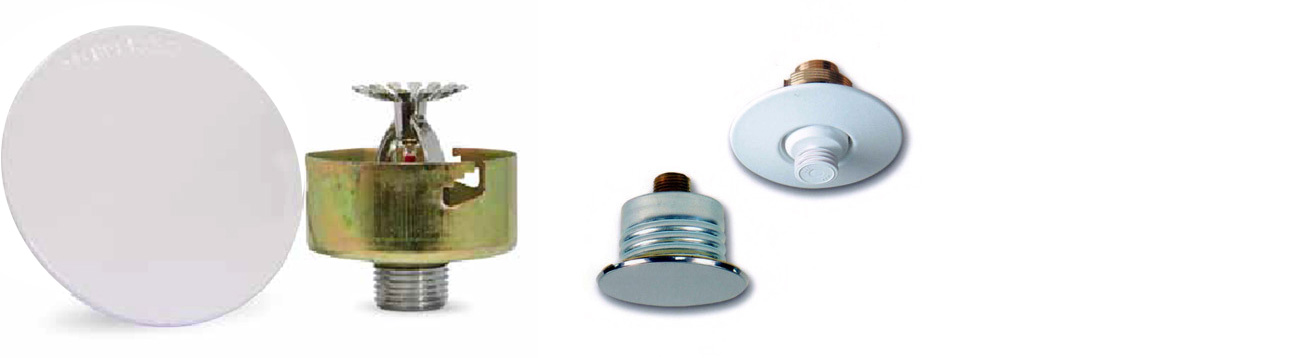

| MODEL | BF003 | BF006 |
| Mounting | Concealed Pendent | |
| Extinguishing Agent | Standard | Quick |
| Orifice Diameter | 13mm | |
| Inlet Connection Type | 1/2" NPT | |
| K Factor | 5.6 (Imp) / 80 (Metric) | |
| Max. Working Pressure | 175psig / 1.2MPa (12bar) | |
| Min. Working Pressure | 7psig / 0.048MPa (0.48bar) | |
| Factory Hydrostatic Test | 500psig (3.4bar) | |
| Body Finishing | Chrome Plated | |
| Cover Plate Temperature | 135℉ / 57℃ | |
| Cover Plate Finishing | White RAL 9010 | |
| MODEL | BF-VT001 |
| Standard | UL Subject 258 |
| Connection Type | 1" M x F NPT |
| Body Material | Brass |
| Working Pressure | 175psig / 12bar |
| K Factor | 5.6 |

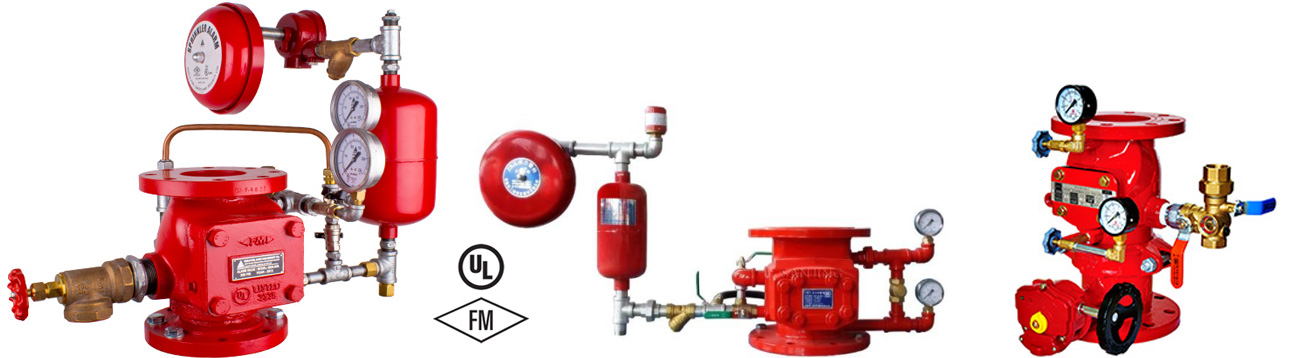

| MODEL Series | BAV-146 | |
| Standard | ANSI/UL 193 | |
| Sizes | 4" / DN100 | 6" / DN150 |
| Inlet Connection | Flanged Class 150 ANSI B16.1 | |
| Max. Working Pressure | 175psi / 12bar | |
| Test Pressure | 350psi / 24bar | |
| Body Material | Ductile Iron | |
| Accessories | Retard Chamber, Water Motor Alarm, Alarm Pressure Switch | |
| Standard Finish | RAL 3000 (Flame Red) | |
We are dedicated to our principles of building quality relationships with our customers. We would greatly appreciate the opportunity to earn your business!
