Firefighting equipment are equipment designed to extinguish fires or protect the user from fire. It may be used by trained fire fighters, untrained users at the scene of a fire, or built into a building's infrastructure. We offers a complete range of risers, standpipes and hose systems complying to local and international standards.

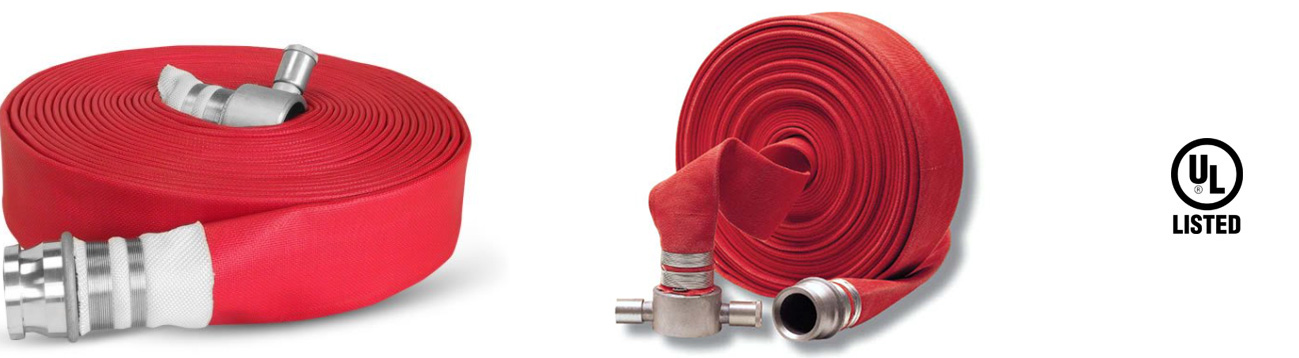

MODEL | BFSJ-001 | BFSJ-002 | BFDJ-003 | BFDJ-004 |
Standard | UL 19 | |||
Hose Diameter | DN40 | DN65 | DN40 | DN65 |
Hose Jacketing | Polyester Single Jacket | Polyester Double Jacket | ||
Hose Length & Type | 30m - Rubber Lined | 30m - Rubber Lined | ||
Service Test Pressure | 14bar | 20bar | ||
Proof Test Pressure | 26bar | 40bar | ||
Working Pressure | 13bar | 18bar | ||
Burst Pressure | 40bar | 60bar |

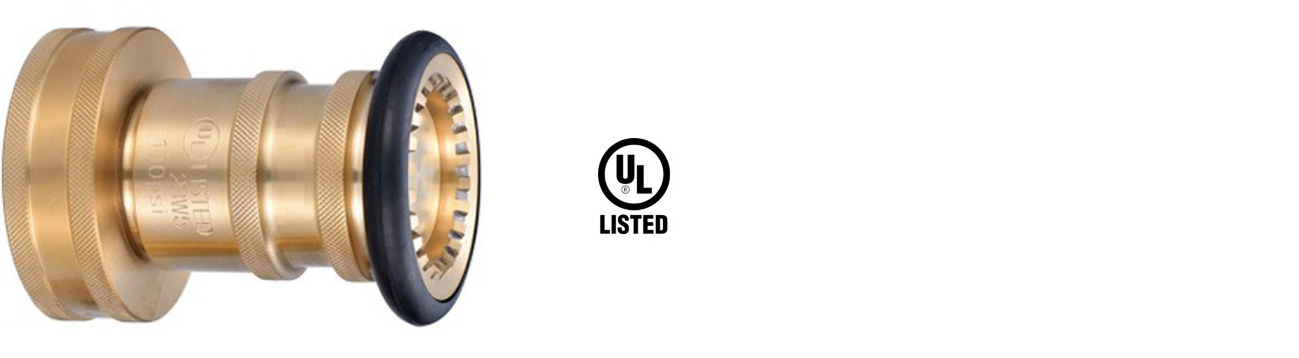

MODEL | BF40 | BF65 |
Standard | ANSI/UL 401 | |
Inlet Coupling Type | DN40 Female NST | DN65 Female NST |
Wide Open Flow Rate | 130gal/m @ 100psi | 280gal/m @ 100psi |
Working Pressure | 20-200psi | |
Fire Class Application | A & B | |
Body Material | Brass | |
Body Finish | Polished Brass |

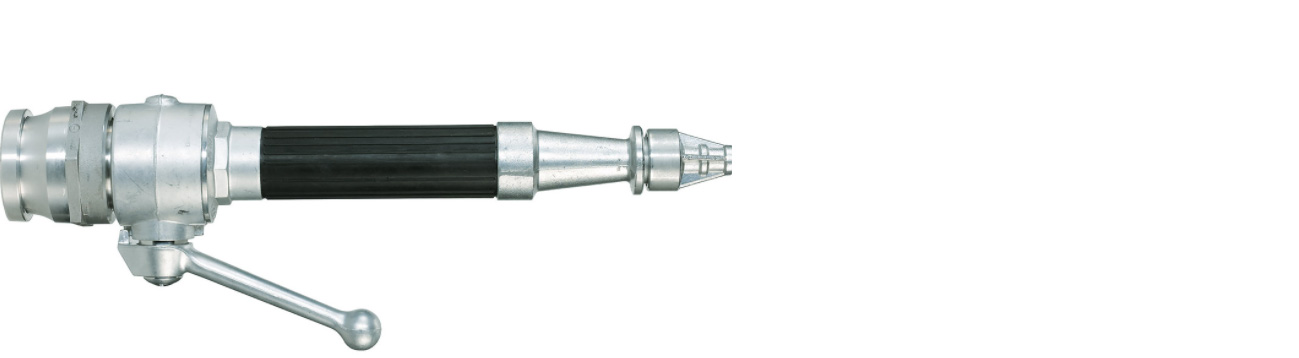

MODEL | BF-NZ-001 |
Inlet Coupling Type | DN65 Male Instantaneous BS336 |
Jet Flow Rate | 250L/m @ 100psi |
Working Pressure | 20-200psi |
Fire Class Application | A & B |
Body Material | Aluminum |
Body Finish | Plain Aluminum |

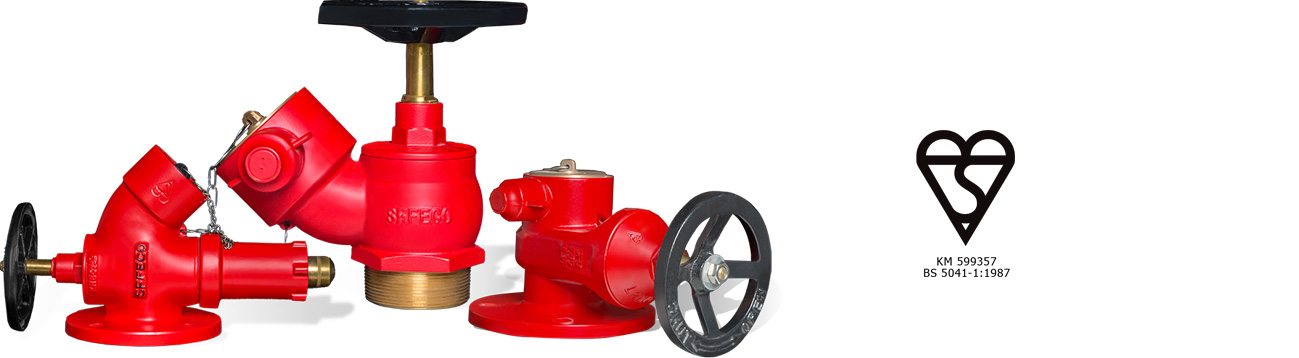

MODEL | BFE-2.5LVFP | |||
Standard | BS 5041-1 | |||
Inlet Coupling Type | DN65 Flange BS4504 PN16 | |||
Outlet Coupling Type | DN65 Female Instantaneous BS336 | |||
Valve Type | "E" Type - Pressure-Reducing (4-12bar) | |||
Min. Flow Rate | 8.5L/s @ 4.7bar | |||
Working Pressure | 20bar | |||
Seal Test Pressure | 22bar | |||
Body Strength Pressure | 30bar | |||
Body Thickness | 4mm | |||
Working Temperature | 0℃ to 38℃ | |||
Body Material | LG2 | |||
Body Color | RAL 3000 (Flame Red) | |||
Accessories | Leather Strap & Padlock |
MODEL Series | BFE-2.5LVF |
Standard | BS 5041-1 |
Inlet Coupling Type | DN65 Flange BS4504 PN16 |
Outlet Coupling Type | DN65 Female Instantaneous BS336 |
Valve Type | Oblique |
Min. Flow Rate | 8.5L/s @ 4.7bar |
Working Pressure | 15bar |
Seal Test Pressure | 16.5bar |
Body Strength Pressure | 22.5bar |
Body Thickness | 3mm |
Working Temperature | 0℃ to 38℃ |
Body Material | LG2 |
Body Color | RAL 3000 (Flame Red) |
Accessories | Leather Strap & Padlock |
MODEL Series | BFE-2.5LVT |
Standard | BS 5041-1 |
Inlet Coupling Type | DN65 Male BSPT |
Outlet Coupling Type | DN65 Female Instantaneous BS336 |
Valve Type | Oblique |
Min. Flow Rate | 8.5L/s @ 4.7bar |
Working Pressure | 15bar |
Seal Test Pressure | 16.5bar |
Body Strength Pressure | 22.5bar |
Body Thickness | 3mm |
Working Temperature | 0℃ to 38℃ |
Body Material | LG2 |
Body Color | RAL 3000 (Flame Red) |
Accessories | Leather Strap & Padlock |

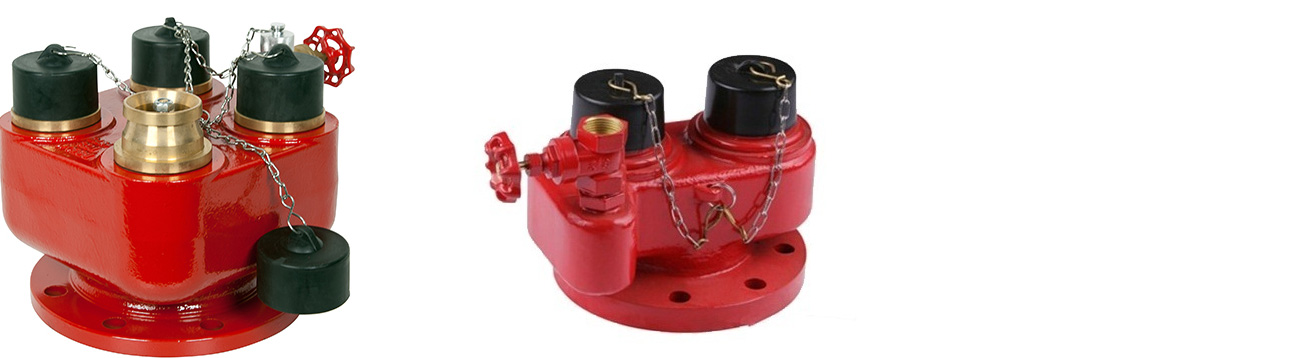

MODEL | BFE-2WBI | BFE-4WBI |
Standard | BS 5041-3 | |
Inlets | 2-way | 4-way |
Inlet Coupling Type | DN65 Male Instantaneous BS336 with Clapper | |
Inlet Material | LG2 | |
Outlet Size | DN100 | DN150 |
Outlet Coupling Type | BS4504 Flange PN16 | |
Working Pressure | 10bar | |
Test Pressure | 20bar | |
Working Temperature | 0℃ to 38℃ | |
Body Material | Cast Iron | |
Body Color | RAL 3000 (Flame Red) | |
Accessories | DN25 PN16 Drain Valve |
